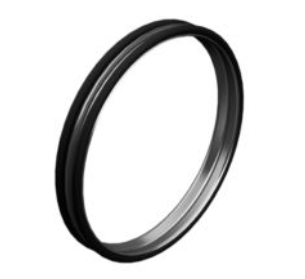

Cat metal face seals are designed provide protection for internal working components like bearings and gears in abrasive applications in heavy machinery operating under extreme arduous conditions where they are subject to severe wear. The seal consists of two metal seal rings and two rubber toric rings. The toric rings provide the proper pressure to both sides of the metal seal rings. Mechanical face seals are self-centering to compensate for shaft eccentricity or misalignment.
Attributes: •Class D seal with LT-NBR toric rings •Seals oil in and abrasives out •Simple reliable design •Maintenance-free •Easy to assemble •Cost effective •Long service life
Application: Typical applications include undercarriage idlers, rollers, large axles, wheels and final drives. Consult your owner's manual or contact your local Cat Dealer for more information.COMPATIBLE MODELS
EXCAVATORS
323D2 L 320 GC 320D L 320 320D GC 323 318D2 L 323D L 320D2 GC 318D L 315D L 313D2 323GC
TRACK EXCAVATORS
320D 320D2
SPECIFICATIONS
Temperature (°C): -35 TO +100
Inside Diameter (mm): 303.57
Lip Outside Diameter (mm): 332.1
Toric Material: LT-NBR
Outside Diameter (mm): 328
Ramp Angle: 15
Housing Diameter (mm): 330.72
Toric Cross Section (mm): 13
O.D. (mm): 328
Ring Material Description: Formed
Attributes: •Class D seal with LT-NBR toric rings •Seals oil in and abrasives out •Simple reliable design •Maintenance-free •Easy to assemble •Cost effective •Long service life
Application: Typical applications include undercarriage idlers, rollers, large axles, wheels and final drives. Consult your owner's manual or contact your local Cat Dealer for more information.COMPATIBLE MODELS
EXCAVATORS
323D2 L 320 GC 320D L 320 320D GC 323 318D2 L 323D L 320D2 GC 318D L 315D L 313D2 323GC
